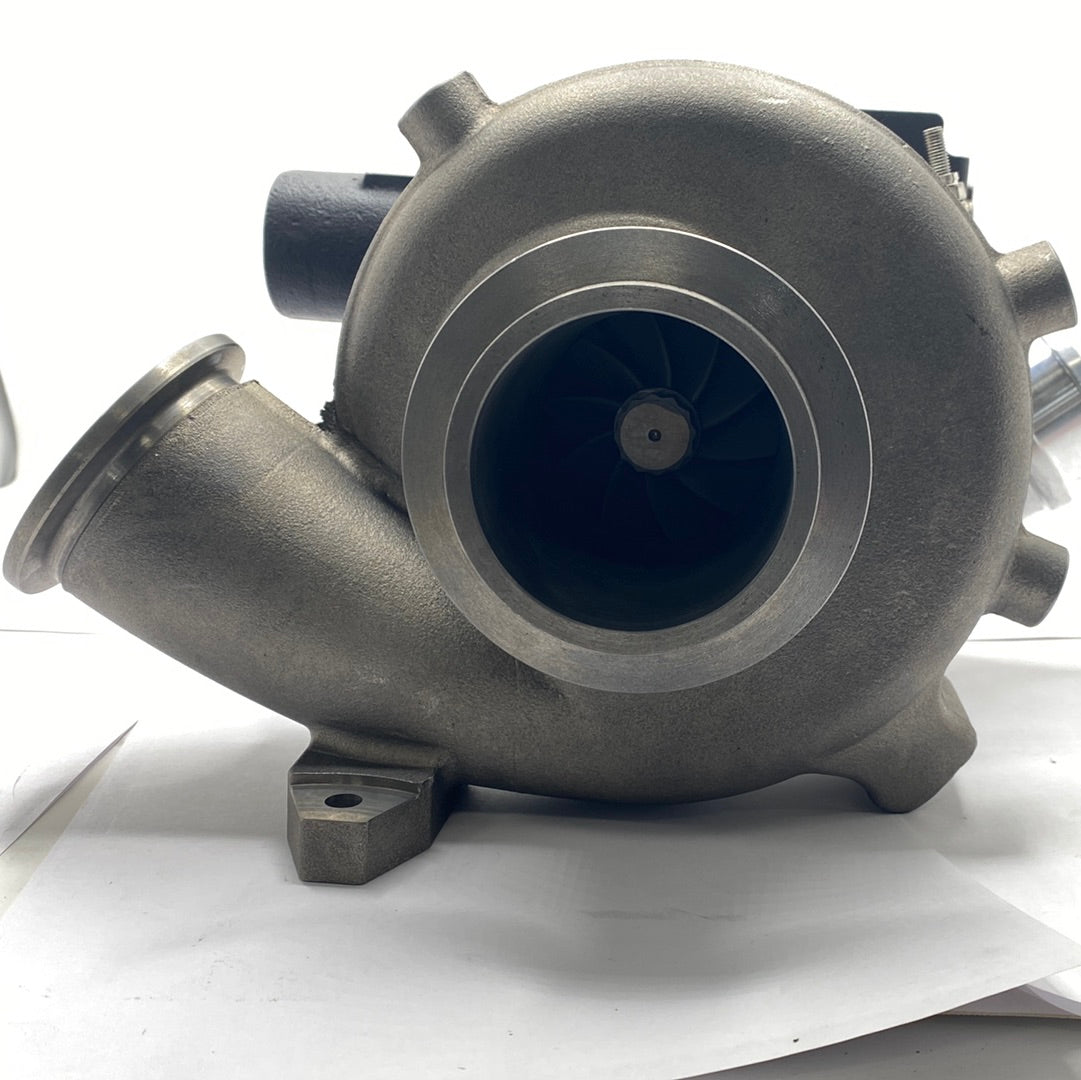

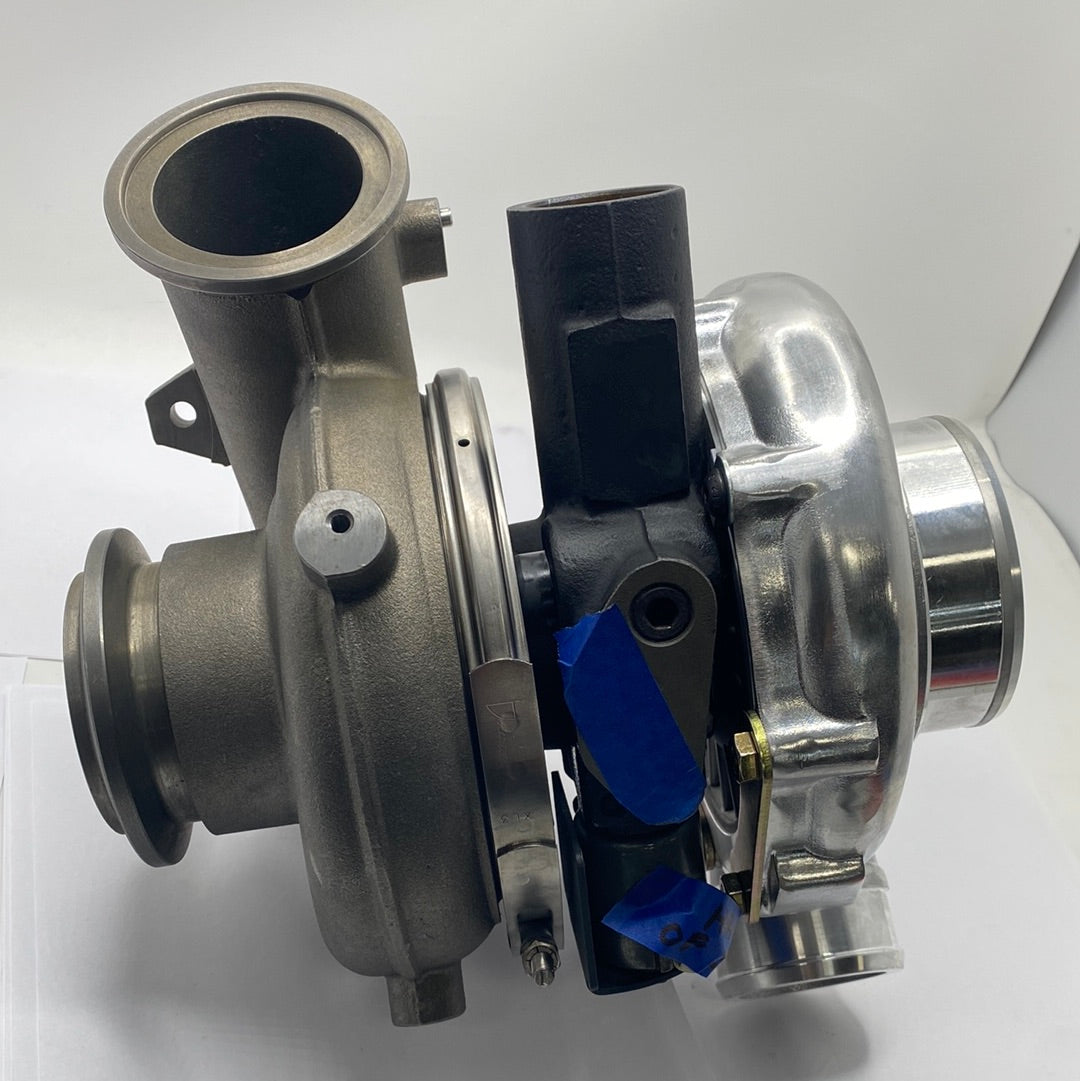

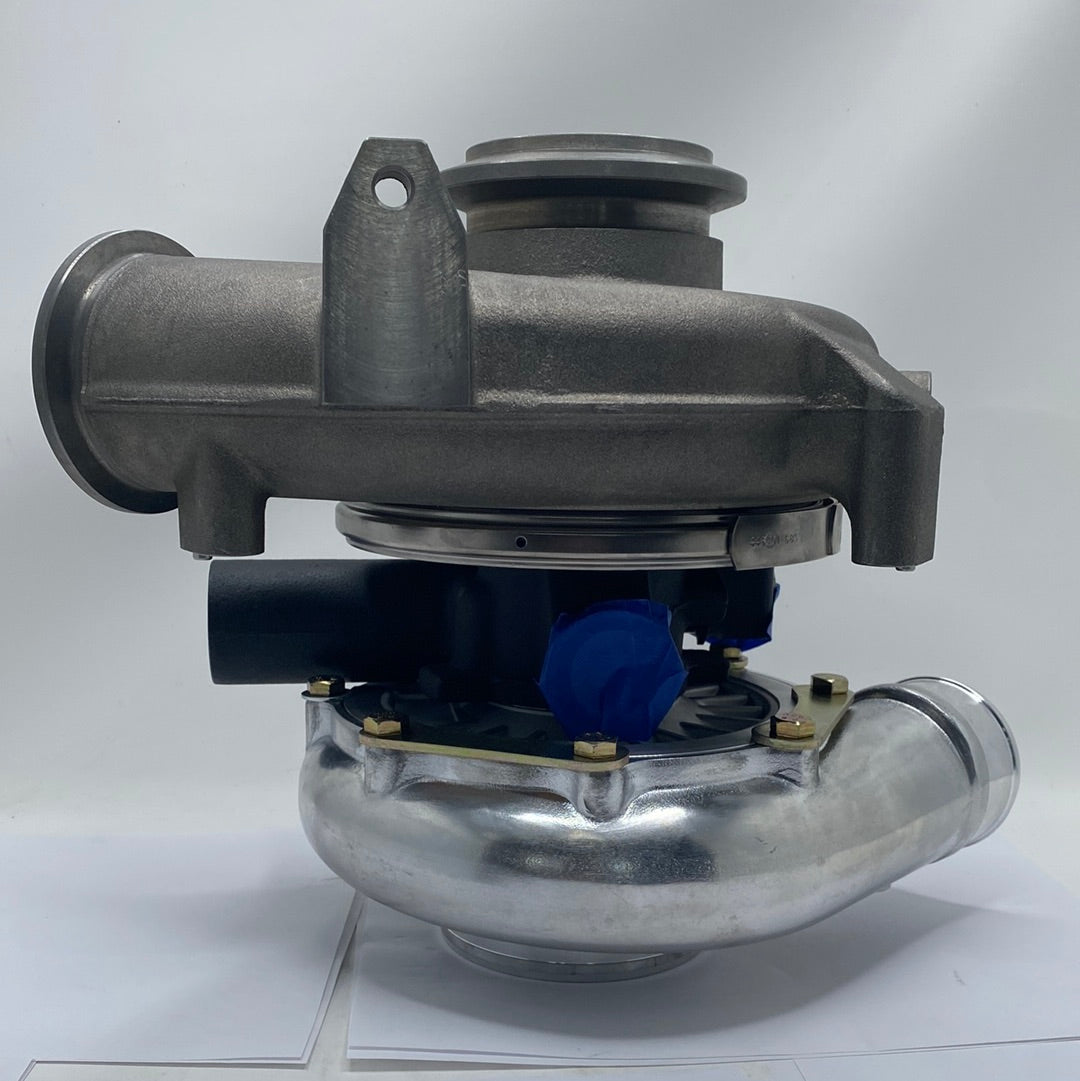

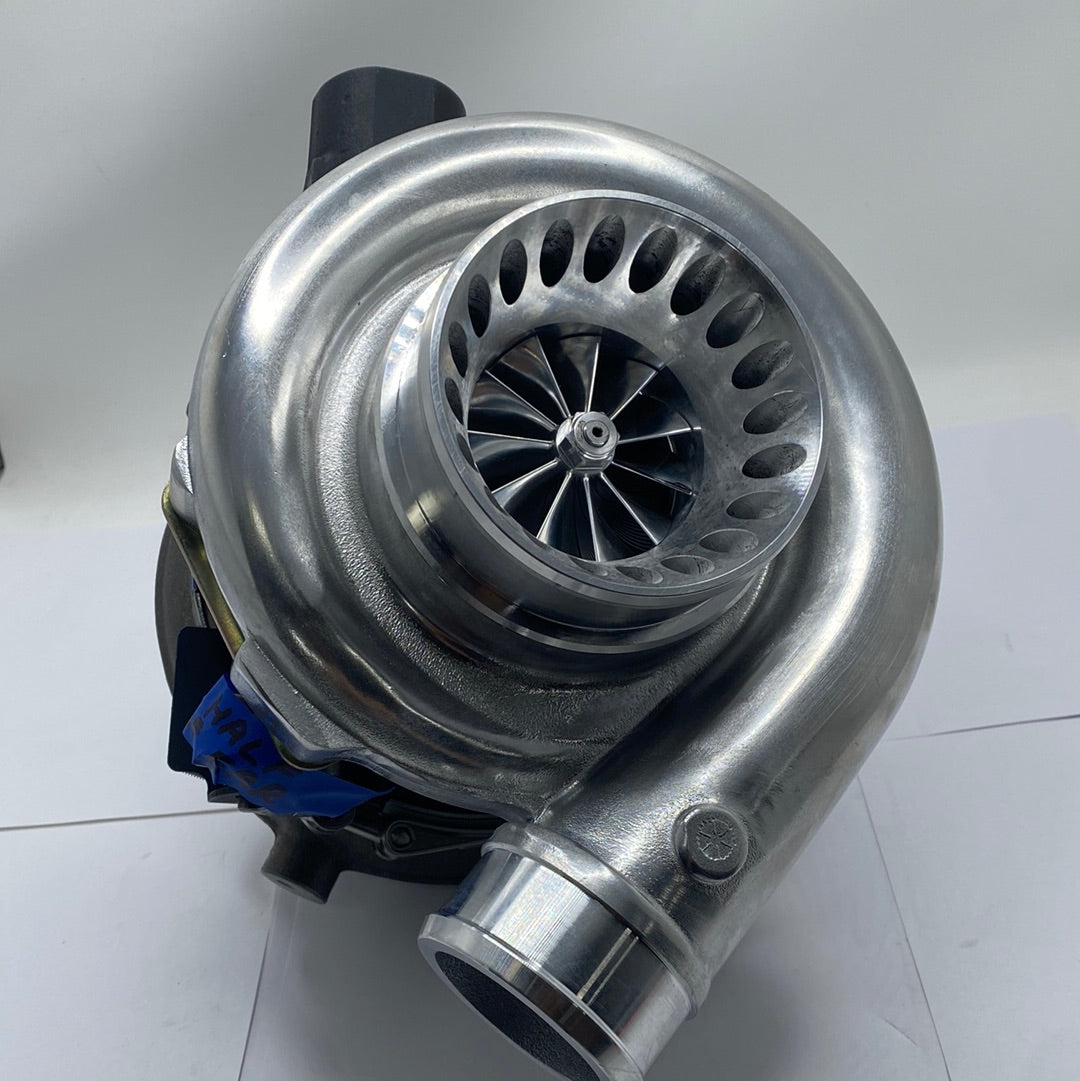

11 blade 63.5mm x 88mm x 94mm billet wheel and housing upgrade
10 blade 66.4mm x 72mm turbine shaft upgrade
.72 AR compressor housing upgrade
2003 15mm vanes upgrade (more control of spool up) (15mm vs 13.2mm(2004.5- 2007))
360 degree brass thrust bearing upgrade
stepped gap seals

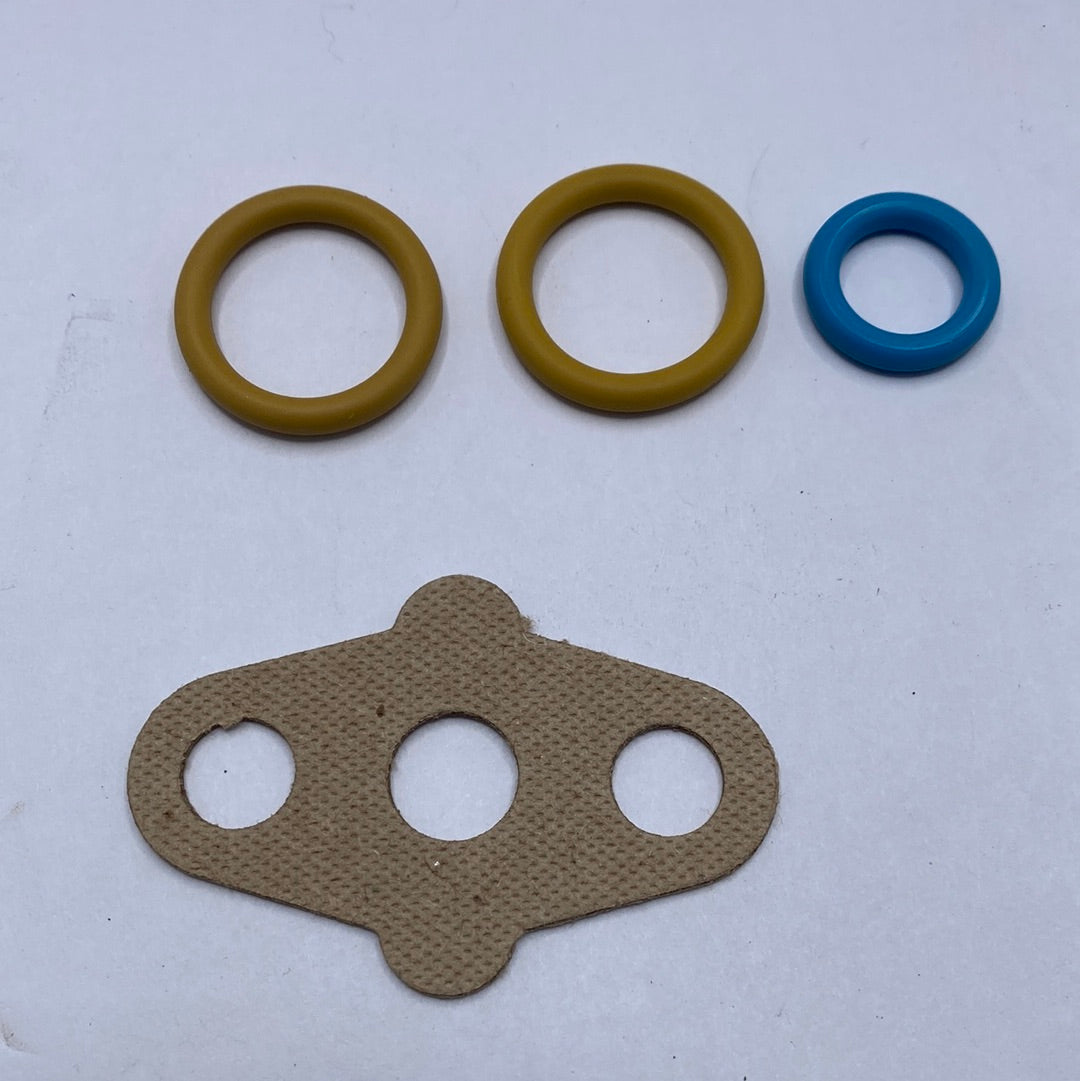

Comes with drain o-rings, oil feed gasket.
support around 600hp on stock injectors
spools up quickly like the factory turbo
loud whistle
brand new turbo
restore your trucks power by replacing the turbo with upgraded unit.
Factory 6.0 Powerstroke pickup truck turbo size:
2003 59mm x 82mm compressor wheel 66.4 x 72mm 10 blade turbine + 15mm vanes
2004.5 2005.5 59mm x 82mm compressor wheel 66.4mm x 72mm 13 blade turbine + 13.2mm vanes
2005.5 - 200756mm x 82mm compressor wheel 64mm x 72mm 13 blade turbine + 13.2mm vanes
***6.0 Ford Powerstroke 2004-2007 F650 F750 models have a smaller turbo (Garrett VT365) that is not upgradable but it can be replaced by swapping on the turbo we have in this listing.
***6.0 Powerstroke 2004-2010 E350 E450 van can use this turbo upgrade.
