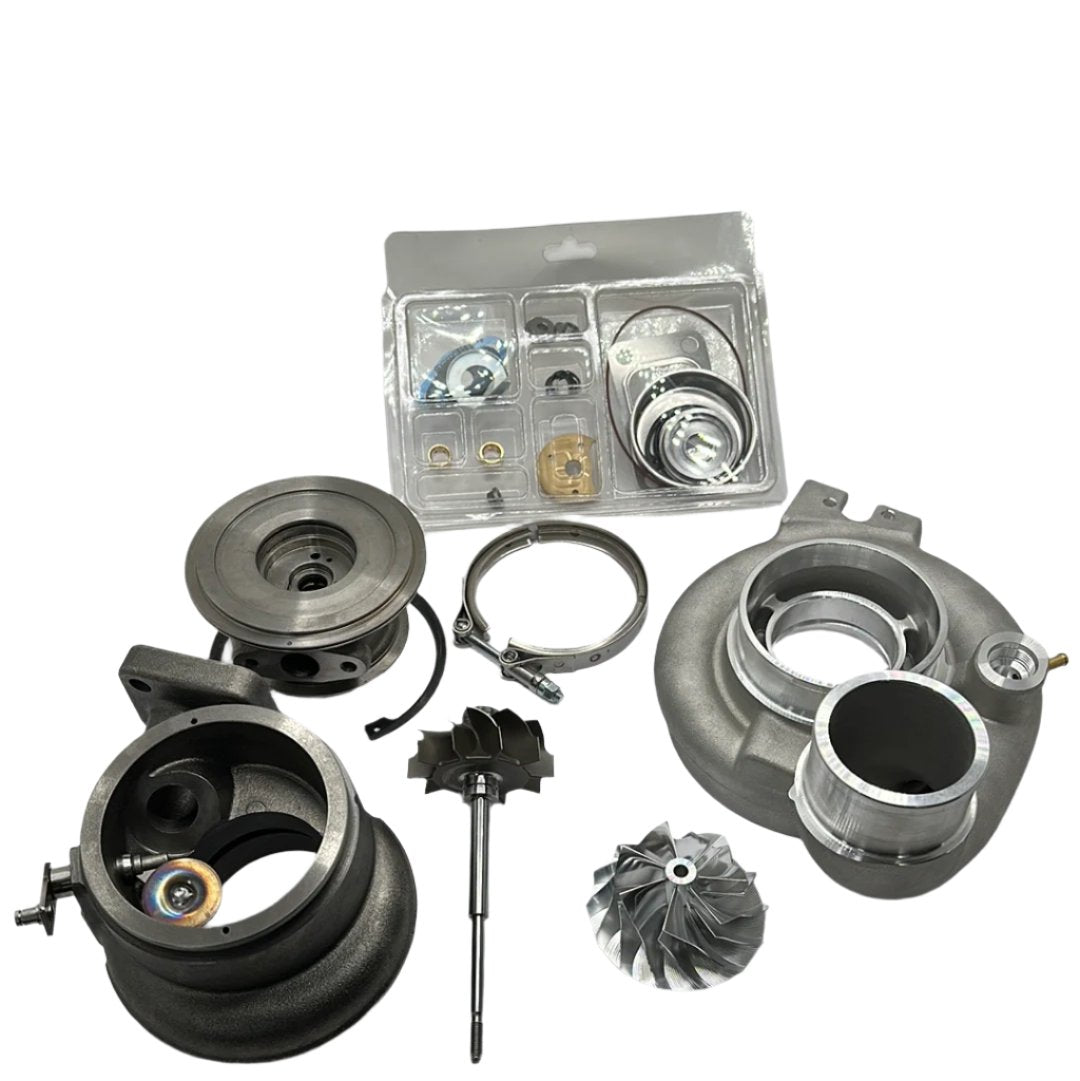

62mm HE351cw build your own turbo upgrade kit

62mm HE351cw build your own turbo upgrade kit

Turbo specs:

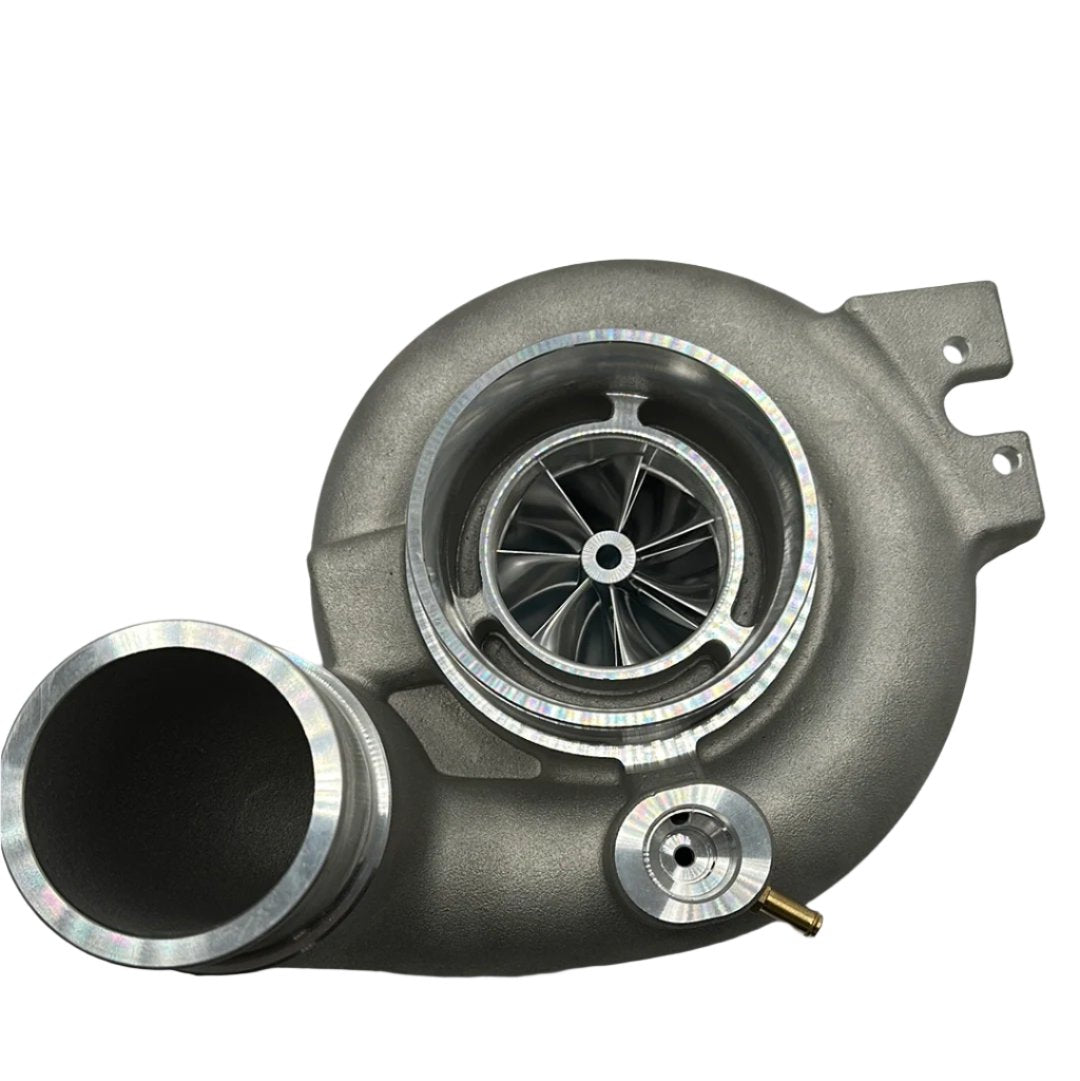

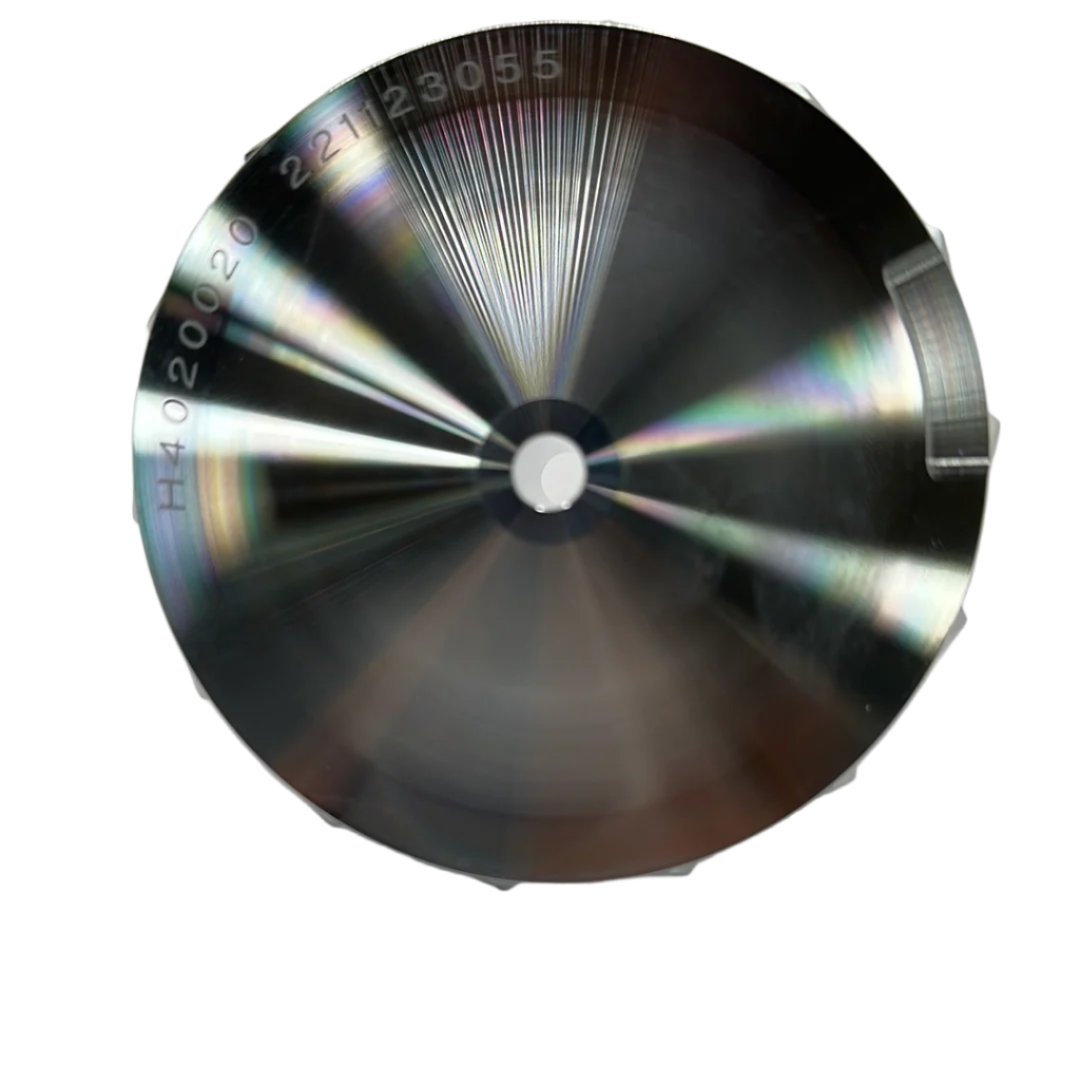

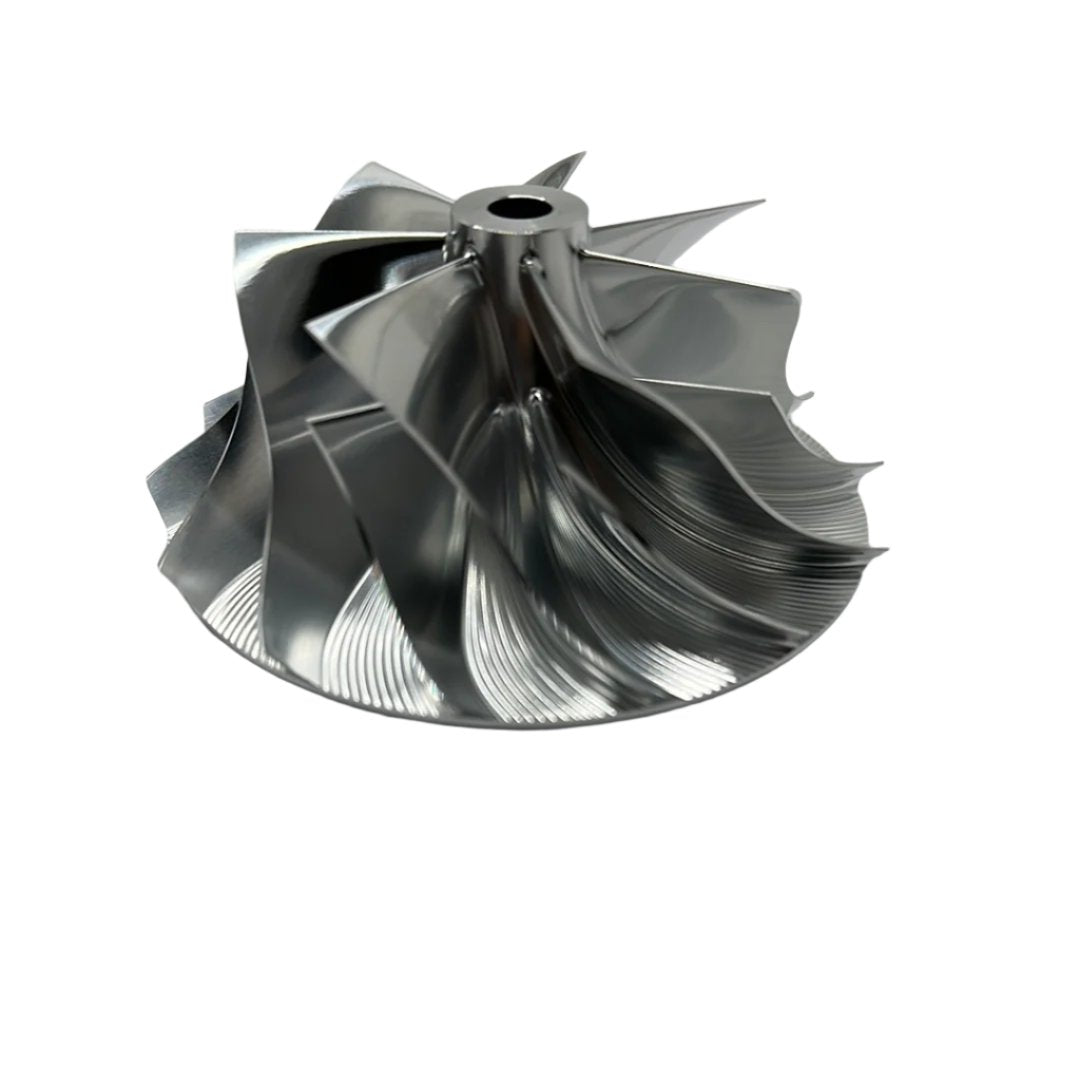

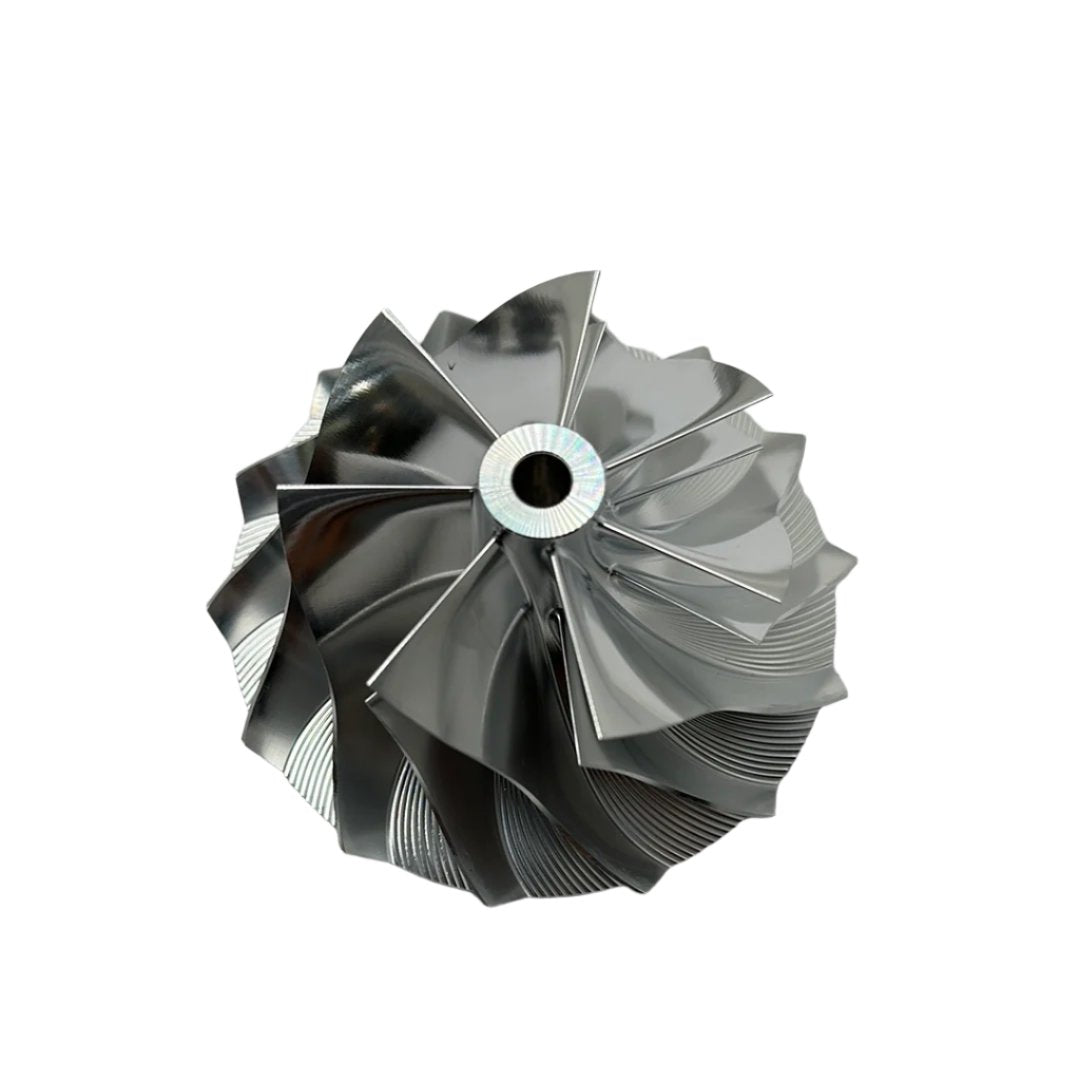

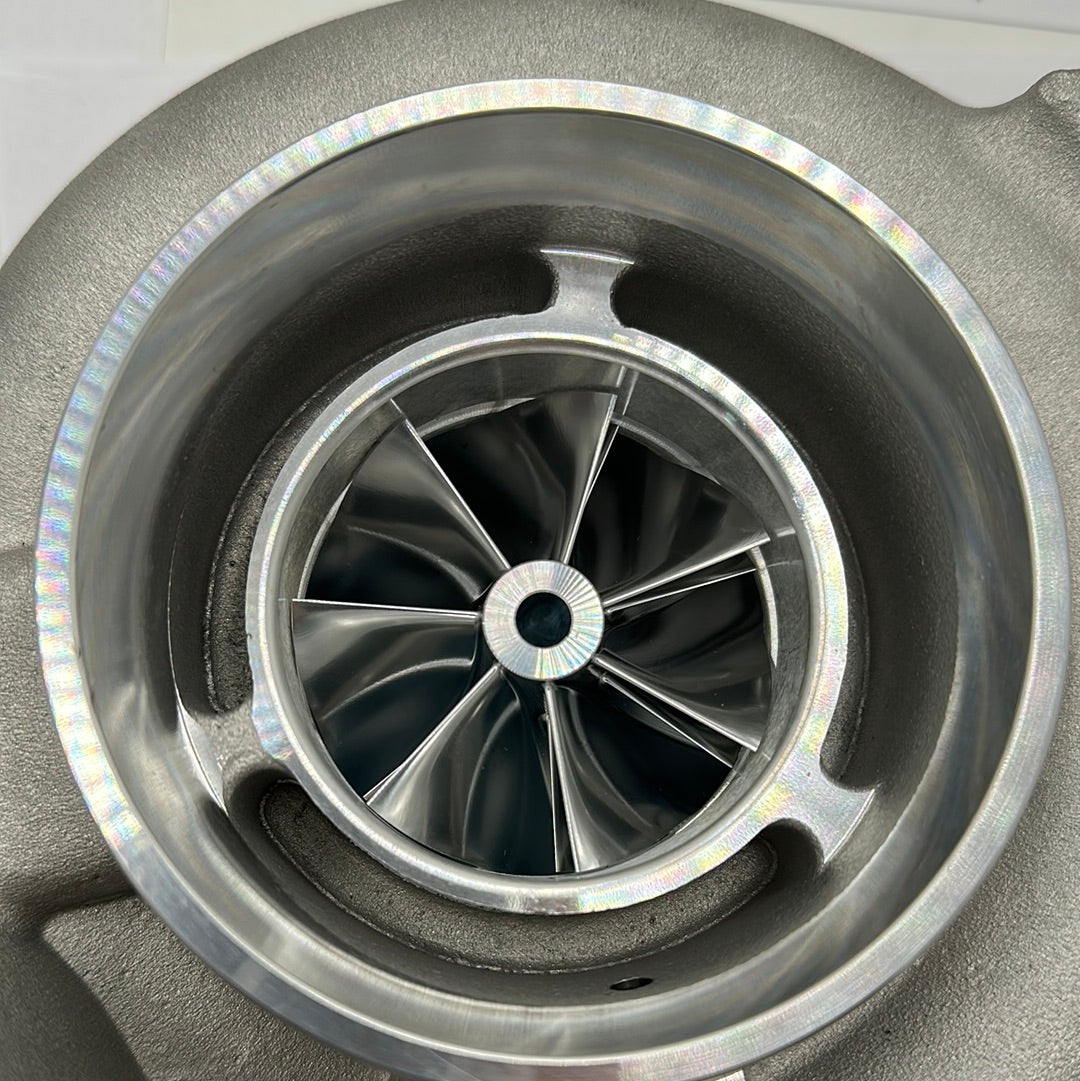

• 62mm by 86mm billet compressor wheel and housing upgrade

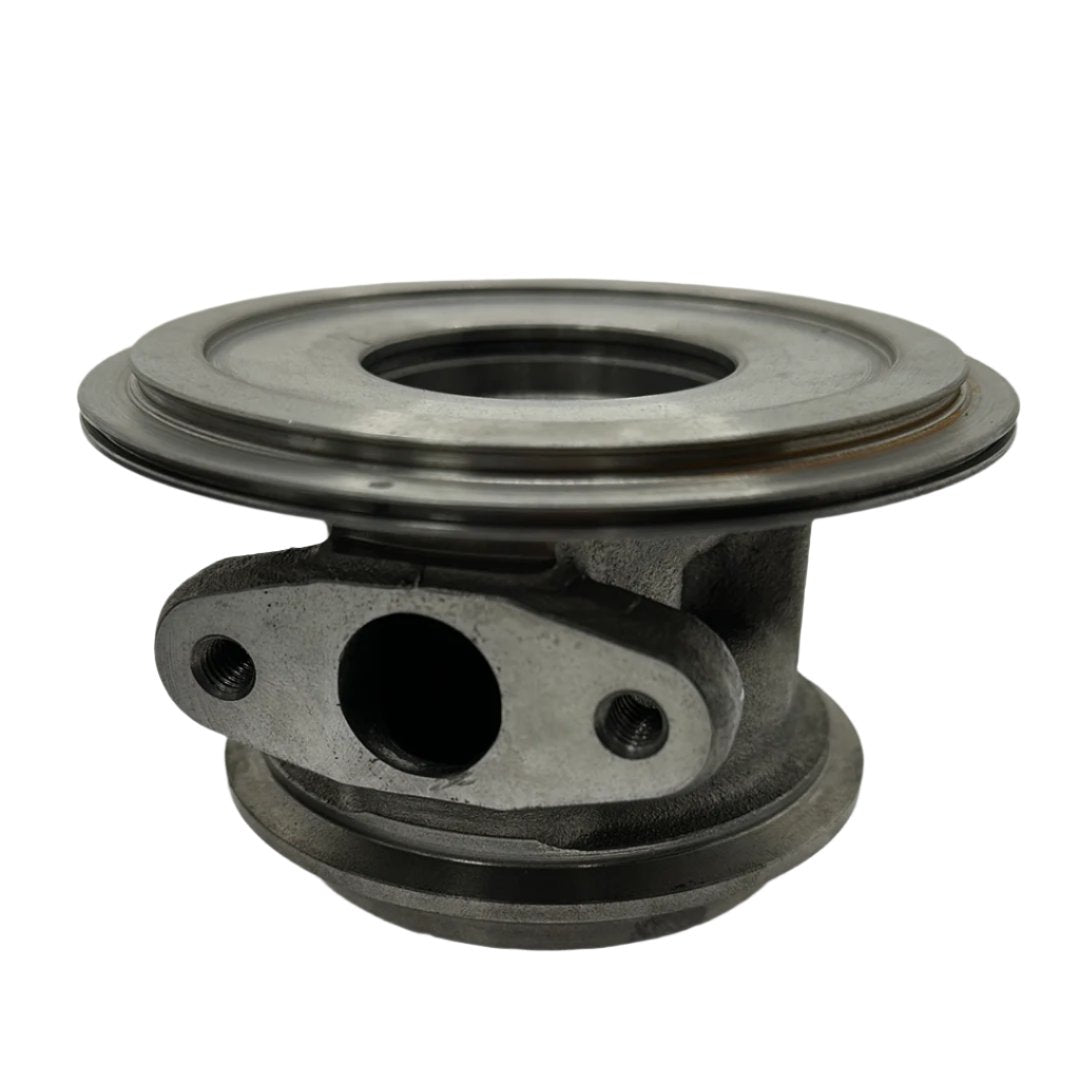

• Bearing housing machined for compressor housing o ring (fixes a common boost leak on these turbos)

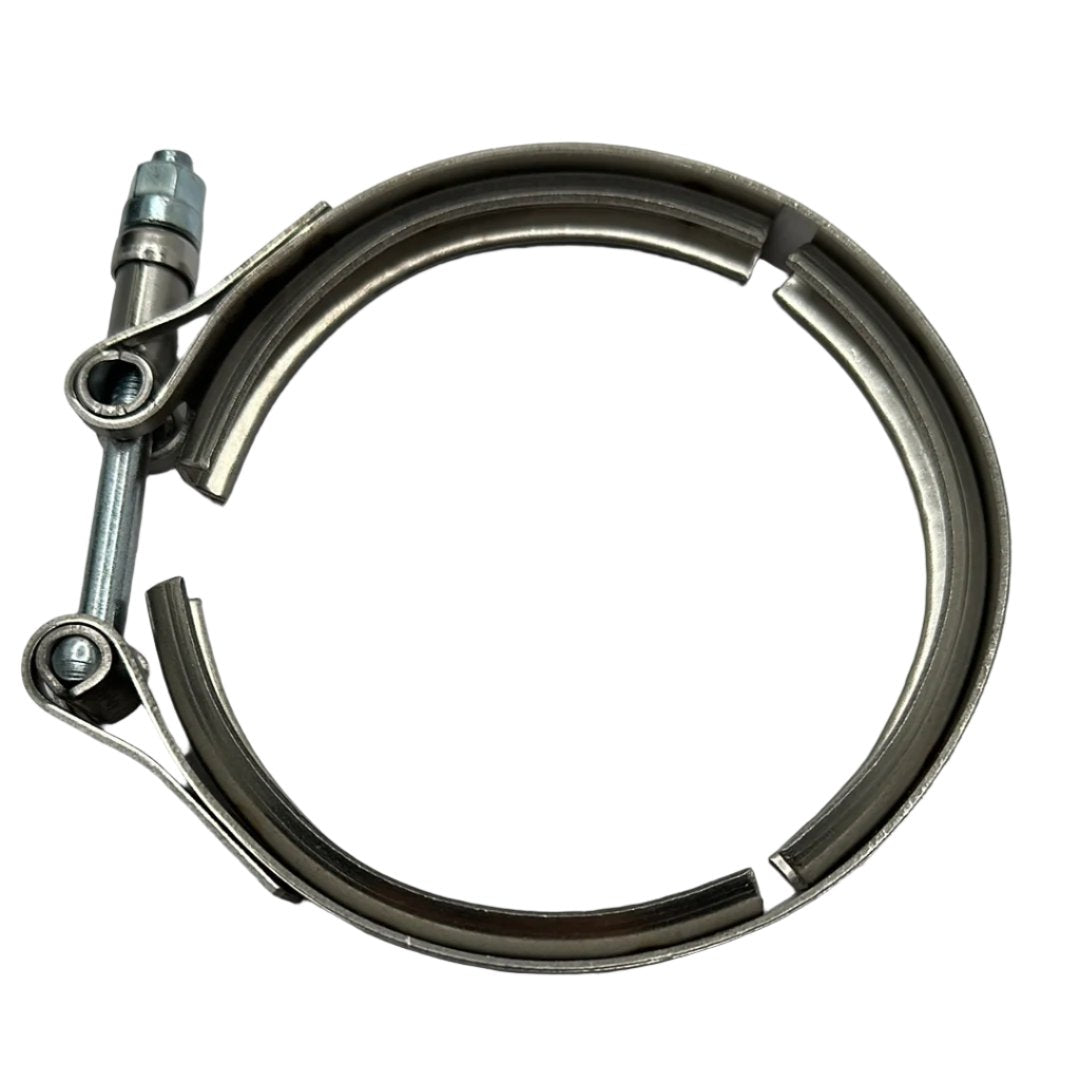

• Vband clamp for bearing housing to turbine housing (stronger bolt, factory bolts commonly break)

• compressor housing clamp

• He351cw rebuild kit

 Turbine housing specs:

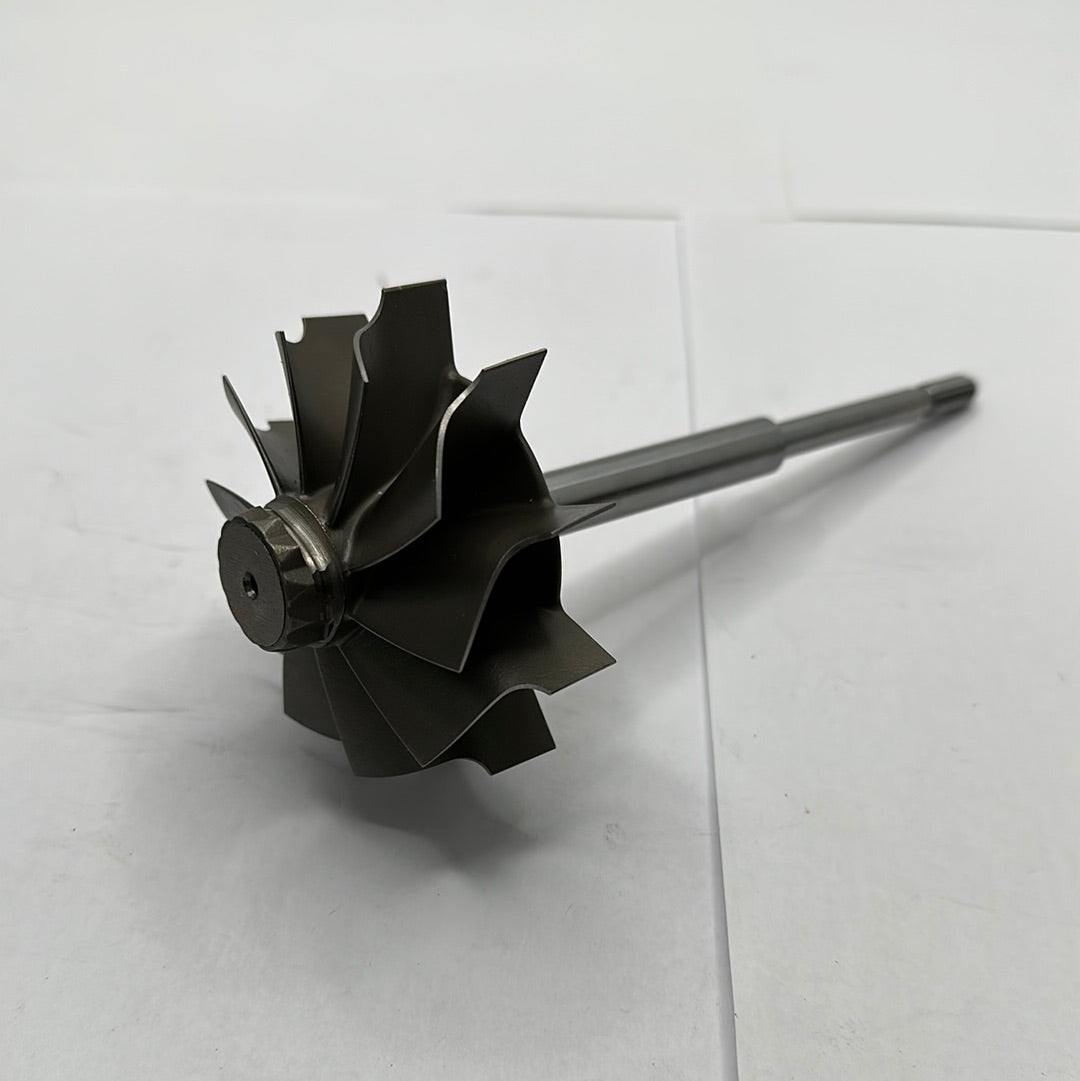

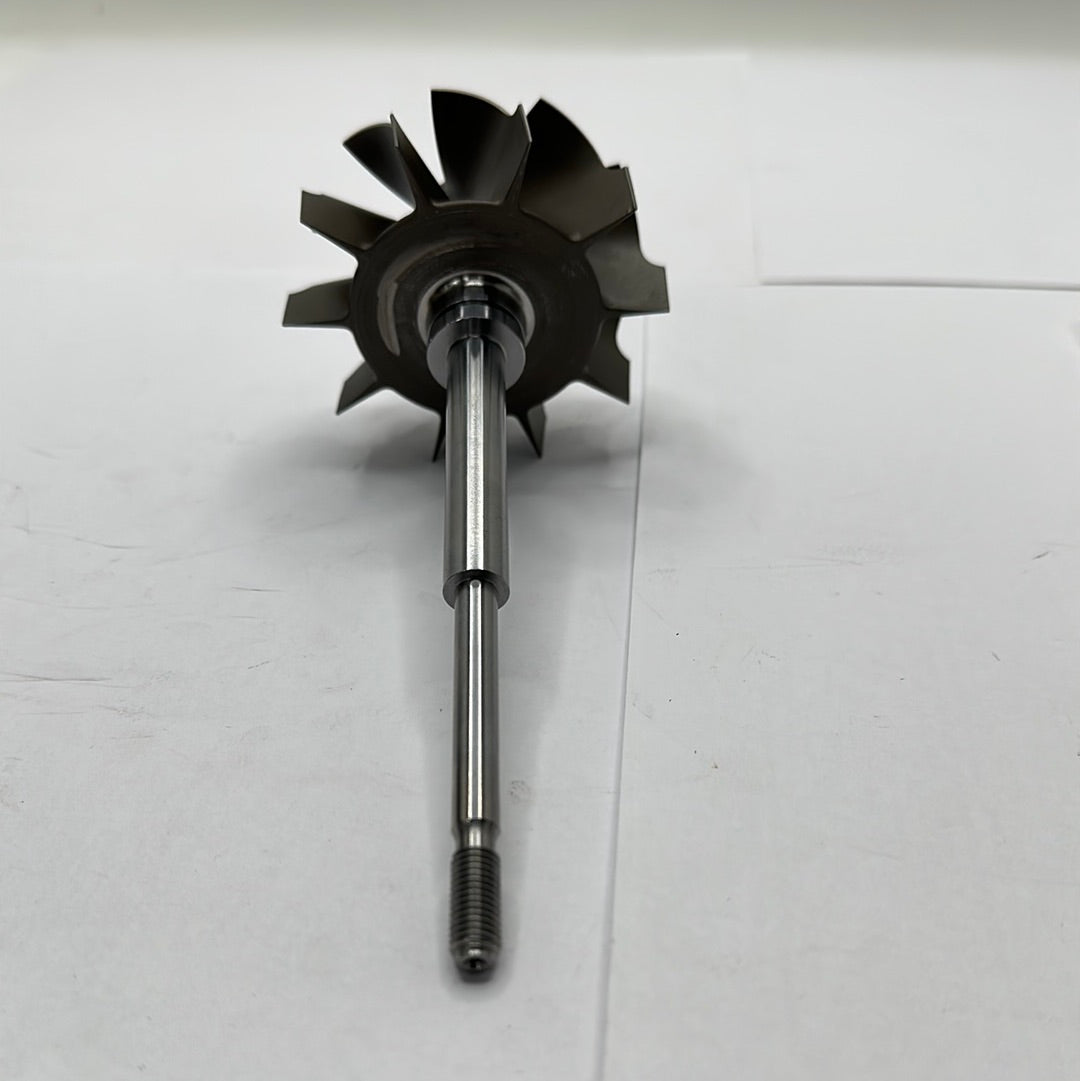

• 67mm by 76mm hx40 10 blade turbine

• he351cw turbine housing machined for 67mm turbine

• lowers egts by 400 degrees and increase topend power

• The 62mm compressor wheel upgrade is good for around 650hp

• The 67mm compressor wheel upgrade is good for around 750hp (we sell these in another listing)

• The turbine housing is a 9cm

HX35 Rebuild kit specs:

• Machined from Copper Bar Upgraded Thrust Bearing

• 2 Journal Bearings

• 4 retaining clip journal bearings

• 1 Thrust Collar

• 1 Thrust Spacer

• 2 Piston Ring Seals (front and rear)

• Front Seal Plate

• Oil Deflector

• Oil Feed Gasket

• Oil Return Gasket

• 1 Rubber O-ring for Front Seal Plate

• 1 Rubber O-ring for Compressor Housing

• 1 Rear Heat Shield

• T3 open scroll manifold gasket
